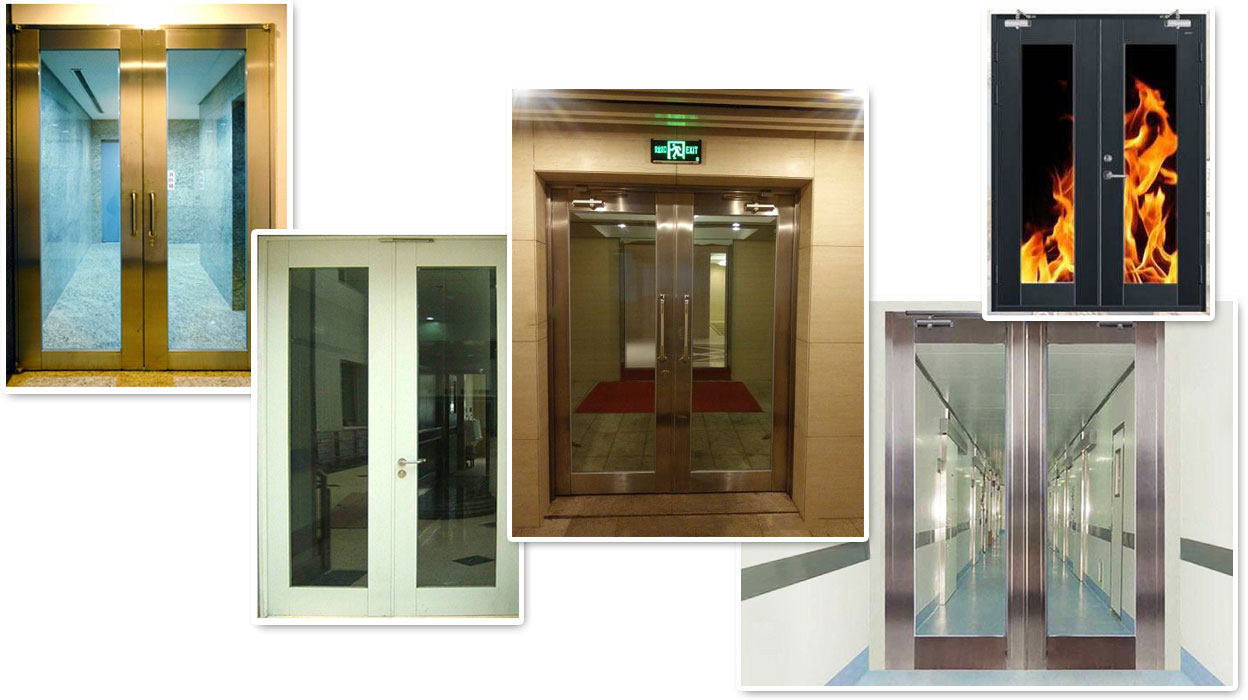

Stainless-steel Glass Fire Doors
Product Brand: TOMSON
Product name: TOMSON Stainless-steel Glass Fire Doors
Product Features: Thermal insulation, Sound insulation, Protection
Project Cases: Huashan Hospital，CNOOC and Shell petrochemical company limited，SAIC MOTOR, Vitasoy Guangzhou
Standard: China GB16729-1997《Graduation and test method for thermal insulating properties of doors and windows》，Thermal Insulation Value：K-1.9W/ （㎡ K), Thermal Insulation classified: Class Ⅱ
Product name/ Fire-rated/ Fire and heat insulation time in hours/ Thermal Insulation/ Sound insulation/ Air-tightness/ Water tightness/ Wind resistance/ Frame material/ Production process
Steel fire resistant class curtain wall/ GA97-1995 Class I/1.0h/1.3W/(m2k)/ RW=47dB/ Class AE/ RE 1200/2kn/m2/1.5mmHigh Quality Steel/ Cold Roll Forming
TOMSON Stainless-steel Glass Fire-rated Doors is composed of fireproof glass, fireproof steel frame, fireproof hardware and fireproof sealing materials, etc. TOMSON Stainless-steel Glass Fire-rated Doors can effectively control the time for building fires to spread to adjacent areas, non-combustible walls whose fire protection time is not less than the requirements of fire protection codes.
The bright glass will provide more light and better visibility, making you enjoy the sunlight and scenery with great transparency and visual experience.
TOMSON Stainless-steel Glass Fire-rated Doors have environmental protection and energy saving functions.
| Technical parameters | |
|---|---|
| Frame material | Frame steel thickness ≥1.4mm |
| Leaf material | Leaf steel thickness ≥0.8mm |
| Surface | Electrostatic powder coating |
| Leaf thickness | 50mm(High fire-retardant Class A), 50mm(High fire-retardant Class B) |
| Fire resistance | A1.50(High fire-retardant Class A), A1.00(High fire-retardant Class B) |
| Glass door Max. area (mm) | 570*1727*26 |
| Glazing Max. area(mm) | 1700*235*26 |
| Infill | Standard non-toxic fireproof board |
| Fire resistant glass | Multi-layer laminated glass |
